Name: Uni-Mount Standard Plow Hydraulic Unit Components
Brand: Standard (Poly &amp; Steel) Diagrams
SKU: 19220
Availability: InStock

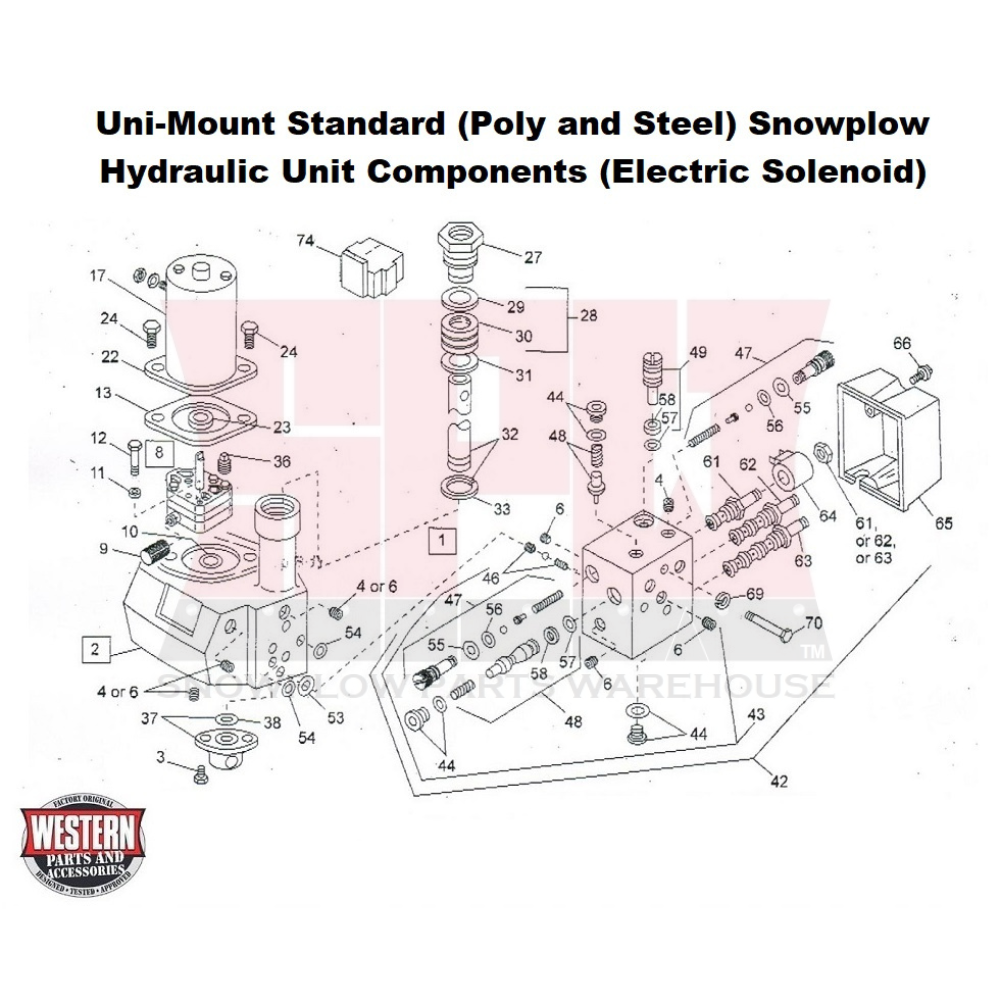

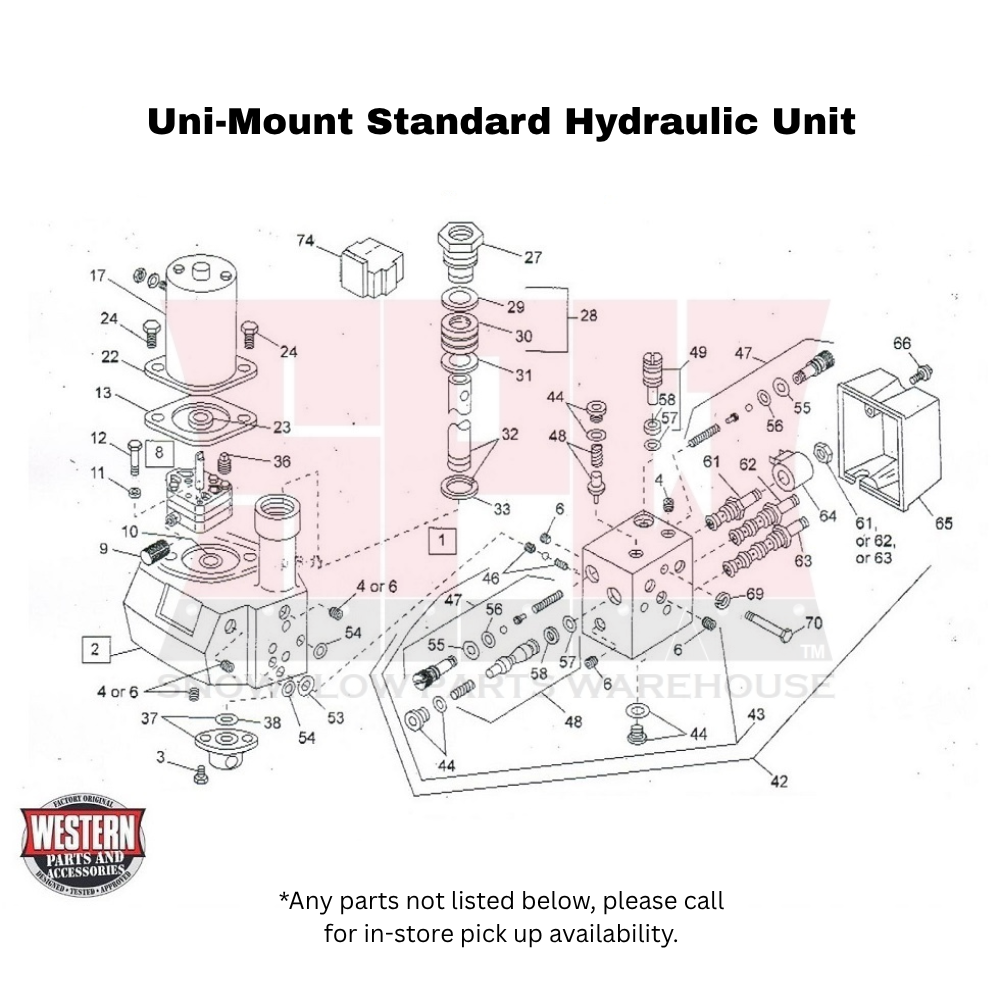

Uni-Mount Standard Plow Hydraulic Unit Components

Item	Quantity	Product	SKU	Price

1	93166 WESTERN 5/16-18X1-1/4 TAPPING SCREW quantity	93166 WESTERN 5/16-18X1-1/4 TAPPING SCREW	93166	$6.00
2	92095 WESTERN PLUG 1/4NPTF HX SO THREAD SEAL quantity	92095 WESTERN PLUG 1/4NPTF HX SO THREAD SEAL	92095	$2.85
3	92071 WESTERN PLUG 1/8 NPTF HX SO quantity	92071 WESTERN PLUG 1/8 NPTF HX SO	92071	$3.78
4	49211 WESTERN UNI-MOUNT INTERNAL HYDRAULIC PUMP KIT quantity	49211 WESTERN UNI-MOUNT INTERNAL HYDRAULIC PUMP KIT	49211	$256.05
6	56185K WESTERN UNI-MOUNT, CONVENTIONAL SUCTION FILTER quantity	56185K WESTERN UNI-MOUNT, CONVENTIONAL SUCTION FILTER	56185K	$12.24
8	56416 Western O-Ring - 014 quantity	56416 Western O-Ring - 014	56416	$0.65
9	90311 WESTERN FLATWASHER 1/4 TYPE A WIDE quantity	90311 WESTERN FLATWASHER 1/4 TYPE A WIDE	90311	$1.48
10	90080 WESTERN HEXCAPSCREW_5/16-18X2-1/2 G5 quantity	90080 WESTERN HEXCAPSCREW_5/16-18X2-1/2 G5	90080	$1.99
11	25861K WESTERN MOTOR GASKET quantity	25861K WESTERN MOTOR GASKET	25861K	$4.64
12	25620 WESTERN O-RING - 115 quantity	25620 WESTERN O-RING - 115	25620	$0.45
13	56133/21500-1K Western New Style 4-1/2" Elec. Motor Uni-Mount, Conventional quantity	56133/21500-1K Western New Style 4-1/2" Elec. Motor Uni-Mount, Conventional	56133	$309.77
14	49014 WESTERN OIL SEAL quantity	49014 WESTERN OIL SEAL	49014	$13.14
17	90066 WESTERN HEXCAPSCREW_7/16-14X1-1/4 G5 quantity	90066 WESTERN HEXCAPSCREW_7/16-14X1-1/4 G5	90066	$4.70
22	25944K WESTERN PACKING NUT 1-1/2" quantity	25944K WESTERN PACKING NUT 1-1/2"	25944K	$35.49
23	25205K WESTERN UNI-MOUNT/CONVENTIONAL PACKING SET WITH WIPER 1.5" quantity	25205K WESTERN UNI-MOUNT/CONVENTIONAL PACKING SET WITH WIPER 1.5"	25205K	$26.39
24	55137 WESTERN WIPER RING 1-1/2" - SEE P/N 25205K quantity	55137 WESTERN WIPER RING 1-1/2" - SEE P/N 25205K	55137	$14.98
26	338 WESTERN FLATWASHER_PLAIN SPECIAL quantity	338 WESTERN FLATWASHER_PLAIN SPECIAL	338	$6.30
27	25202 WESTERN UNI-MOUNT & CONVENTIONAL (1-1/2" X 6") LIFT PLUNGER quantity	25202 WESTERN UNI-MOUNT & CONVENTIONAL (1-1/2" X 6") LIFT PLUNGER	25202	$102.42
28	92079 WESTERN PLUG 3/8 NPTF SQ quantity	92079 WESTERN PLUG 3/8 NPTF SQ	92079	$3.47
29	25968K Western Base Lug With O-Ring quantity	25968K Western Base Lug With O-Ring	25968K	$37.69
30	25618 WESTERN O-RING - 216 quantity	25618 WESTERN O-RING - 216	25618	$1.36
31	92960 WESTERN 3/8-24 HX SO O-RING BOSS PLUG quantity	92960 WESTERN 3/8-24 HX SO O-RING BOSS PLUG	92960	$7.74
32	49225 WESTERN INLET CHECK VALVE KIT quantity	49225 WESTERN INLET CHECK VALVE KIT	49225	$30.20
36	49138K-5 WESTERN CUSHION RELIEF VALVE KIT quantity	49138K-5 WESTERN CUSHION RELIEF VALVE KIT	49138K-5	$20.30
37	49226K WESTERN POPPET CHECK VALVE KIT quantity	49226K WESTERN POPPET CHECK VALVE KIT	49226K	$51.22
38	56330 Western Quill Assy quantity	56330 Western Quill Assy	56330	$41.24
42	56274 Western O-Ring - 013 quantity	56274 Western O-Ring - 013	56274	$2.51
43	25730 WESTERN O-RING - 012 quantity	25730 WESTERN O-RING - 012	25730	$3.59
44	25731 WESTERN O-RING - 010 quantity	25731 WESTERN O-RING - 010	25731	$3.47
46	55371 WESTERN O-RING 008 quantity	55371 WESTERN O-RING 008	55371	$3.47
47	25622 WESTERN O-RING - 006 quantity	25622 WESTERN O-RING - 006	25622	$4.99
48	49227K-2 WESTERN #20 CARTRIDGE VALVE 2-WAY W/NUT quantity	49227K-2 WESTERN #20 CARTRIDGE VALVE 2-WAY W/NUT	49227K-2	$82.17
49	49228K-1 WESTERN #30 CARTRIDGE VALVE 3-WAY W/JAM NUT quantity	49228K-1 WESTERN #30 CARTRIDGE VALVE 3-WAY W/JAM NUT	49228K-1	$113.94
53	49229K-1 WESTERN #40 CARTRIDGE VALVE 4-WAY W/NUT quantity	49229K-1 WESTERN #40 CARTRIDGE VALVE 4-WAY W/NUT	49229K-1	$127.98
54	49230K-2 WESTERN COIL W/ SPADE TERMINALS quantity	49230K-2 WESTERN COIL W/ SPADE TERMINALS	49230K-2	$27.12
55	56291 Western Pump Valve Cover Assy quantity	56291 Western Pump Valve Cover Assy	56291	$30.05
56	61246 Western Cable Boot quantity	61246 Western Cable Boot	61246	$11.69
57	49340 WESTERN MAJOR OVERHAUL SEAL KIT 1-1/2" ELECTRIC POWER PACK quantity	49340 WESTERN MAJOR OVERHAUL SEAL KIT 1-1/2" ELECTRIC POWER PACK	49340	$209.22
61	49258-2 WESTERN SEAL KIT 2-WAY VALVE # 20 quantity	49258-2 WESTERN SEAL KIT 2-WAY VALVE # 20	49258-2	$25.14
