Name: UltraMount Fleet Flex MidWeight Plow Lift Frame &amp; A-Frame Components
Brand: UltraMount Fleet Flex MidWeight Diagrams
SKU: 18715
Availability: InStock

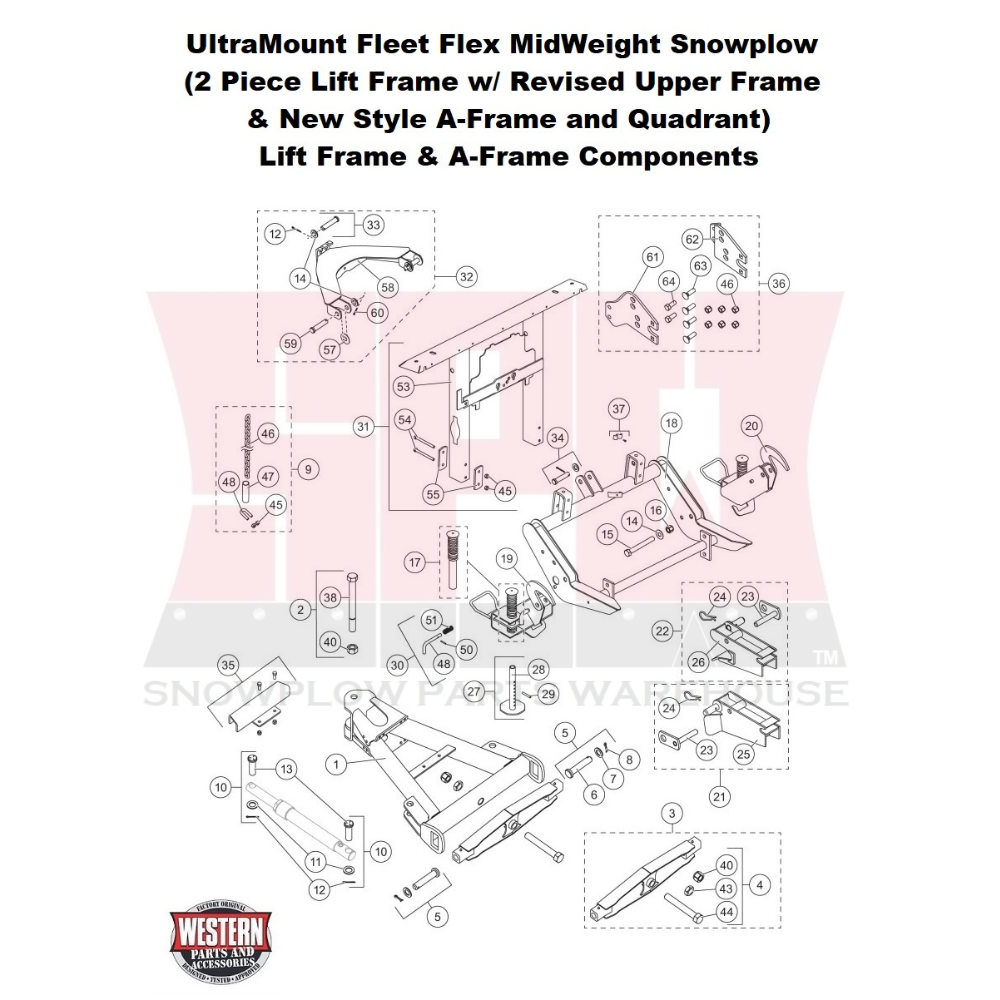

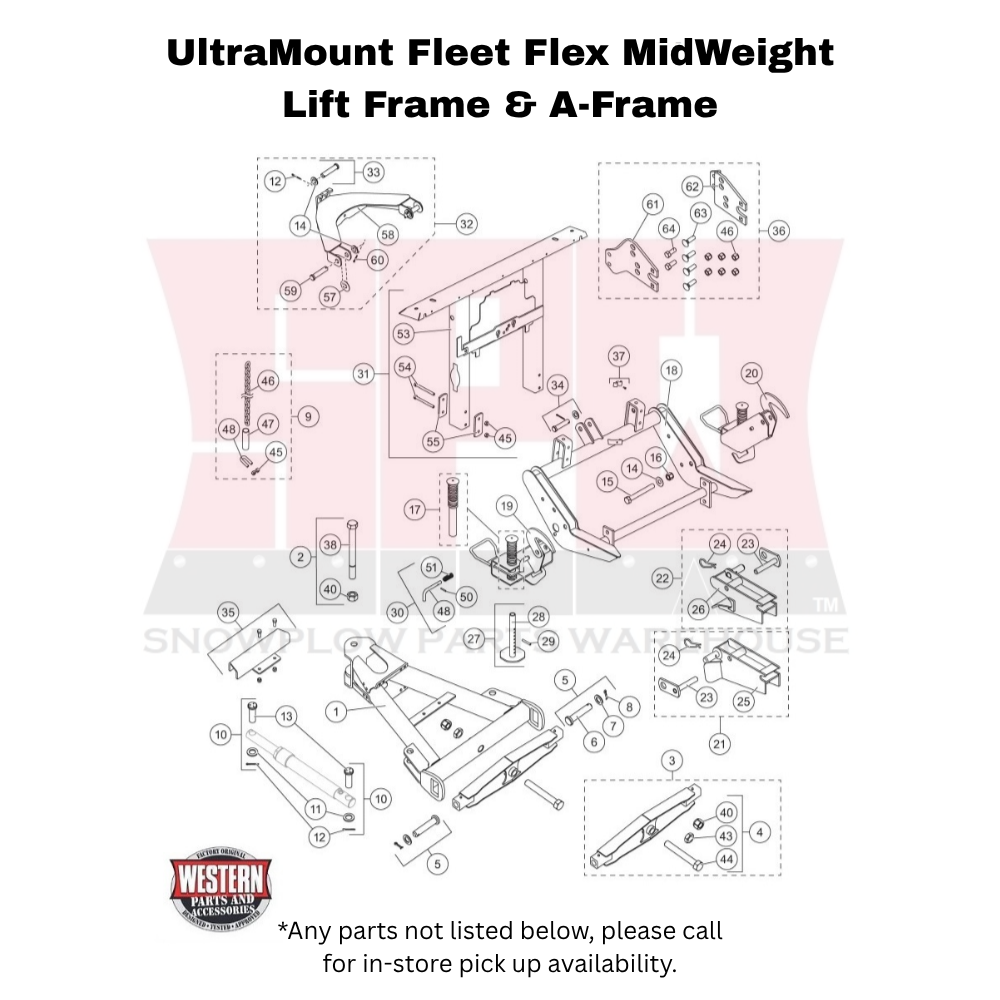

UltraMount Fleet Flex MidWeight Plow Lift Frame & A-Frame Components

Item	Quantity	Product	SKU	Price

2	69494 WESTERN NOSE PLATE BOLT KIT quantity	69494 WESTERN NOSE PLATE BOLT KIT	69494	$68.76
3	67842-1 WESTERN PIVOT BAR KIT quantity	67842-1 WESTERN PIVOT BAR KIT	67842-1	$261.65
4	67855 WESTERN ULTRA MOUNT PIVOT BOLT KIT quantity	67855 WESTERN ULTRA MOUNT PIVOT BOLT KIT	67855	$29.16
5	49645 WESTERN PIVOT BAR PIN KIT quantity	49645 WESTERN PIVOT BAR PIN KIT	49645	$14.06
7 & 11	91192 FLATWASHER_SPECIAL quantity	91192 FLATWASHER_SPECIAL	91192	$0.67
8	90607 WESTERN COTTER PIN 1/4X1-3/4 quantity	90607 WESTERN COTTER PIN 1/4X1-3/4	90607	$0.67
9	49033 WESTERN REPLACEMENT CHAIN ASSY quantity	49033 WESTERN REPLACEMENT CHAIN ASSY	49033	$63.26
10	63973 WESTERN ULTRA MOUNT ANGLE CYLINDER PIN KIT quantity	63973 WESTERN ULTRA MOUNT ANGLE CYLINDER PIN KIT	63973	$22.76
11	91911K WESTERN COTTER PIN - 5/32" quantity	91911K WESTERN COTTER PIN - 5/32"	91911K	$1.48
12	93074 WESTERN CLEVIS PIN 1 X 3-1/4" G5 quantity	93074 WESTERN CLEVIS PIN 1 X 3-1/4" G5	93074	$16.08
13	91147 WESTERN FLATWASHER 3/4 TYPE A NARROW quantity	91147 WESTERN FLATWASHER 3/4 TYPE A NARROW	91147	$0.89
14	66451 WESTERN HEXCAPSCREW_3/4-10X6 G5 quantity	66451 WESTERN HEXCAPSCREW_3/4-10X6 G5	66451	$15.60
15	91338 WESTERN HEXLOCKNUT_3/4-10 GB TOPRING quantity	91338 WESTERN HEXLOCKNUT_3/4-10 GB TOPRING	91338	$5.59
16	48523 WESTERN STAND PLUNGER ASSEMBLY quantity	48523 WESTERN STAND PLUNGER ASSEMBLY	48523	$43.53
19	72618 WESTERN ULTRA MOUNT STAND ASSEMBLY DRIVER SIDE quantity	72618 WESTERN ULTRA MOUNT STAND ASSEMBLY DRIVER SIDE	72618	$407.26
20	72617 WESTERN ULTRA MOUNT STAND ASSEMBLY PASSENGER SIDE quantity	72617 WESTERN ULTRA MOUNT STAND ASSEMBLY PASSENGER SIDE	72617	$407.26
21	76722 WESTERN ULTRA MOUNT 2 RECEIVER KIT DRIVERS SIDE quantity	76722 WESTERN ULTRA MOUNT 2 RECEIVER KIT DRIVERS SIDE	76722	$328.21
22	76718 WESTERN ULTRAMOUNT 2 RECEIVER KIT PASSENGER SIDE quantity	76718 WESTERN ULTRAMOUNT 2 RECEIVER KIT PASSENGER SIDE	76718	$328.21
23	67665/42498 WESTERN DISCONTINUED SEE P/N 42498 quantity	67665/42498 WESTERN DISCONTINUED SEE P/N 42498	67665	$58.12
24	91965K-1 WESTERN HAIRPIN COTTER 5/32" quantity	91965K-1 WESTERN HAIRPIN COTTER 5/32"	91965K-1	$3.61
27	67847 WESTERN SHOE ASSEMBLY KIT - ULTRA MOUNT STAND quantity	67847 WESTERN SHOE ASSEMBLY KIT - ULTRA MOUNT STAND	67847	$57.42
29	67635 WESTERN PIN ROLL 1/4 X 2 BP quantity	67635 WESTERN PIN ROLL 1/4 X 2 BP	67635	$1.82
30	67844 WESTERN STAND LOCK PIN KIT quantity	67844 WESTERN STAND LOCK PIN KIT	67844	$18.25
32	67850-2 WESTERN LIFT ARM UT quantity	67850-2 WESTERN LIFT ARM UT	67850-2	$170.20
33	68740 WESTERN CLEVIS PIN KIT 3/4X3-1/2 quantity	68740 WESTERN CLEVIS PIN KIT 3/4X3-1/2	68740	$12.71
34	93063K WESTERN CLEVIS PIN KIT 3/4 X 3-1/4 quantity	93063K WESTERN CLEVIS PIN KIT 3/4 X 3-1/4	93063K	$8.99
35	67843 WESTERN PIVOT PLATE KIT quantity	67843 WESTERN PIVOT PLATE KIT	67843	$273.54
36	49479-1 WESTERN HOSE BRACKET KIT quantity	49479-1 WESTERN HOSE BRACKET KIT	49479-1	$14.93
37	67748 WESTERN 1-8 HEX JAM NUT G5 quantity	67748 WESTERN 1-8 HEX JAM NUT G5	67748	$8.77
43	67552 WESTERN HEXCAPSCREW 1-8X7 G5 quantity	67552 WESTERN HEXCAPSCREW 1-8X7 G5	67552	$21.94
44	91333 WESTERN HEXLOCKNUT 3/8-16 GB TOPRING quantity	91333 WESTERN HEXLOCKNUT 3/8-16 GB TOPRING	91333	$5.09
45	90453 WESTERN U-BOLT 3/8-16 X 1-1/2 G5 quantity	90453 WESTERN U-BOLT 3/8-16 X 1-1/2 G5	90453	$21.36
48	67700 WESTERN 3/16 X 1-1/4 ROLL PIN quantity	67700 WESTERN 3/16 X 1-1/4 ROLL PIN	67700	$2.85
50	67726 WESTERN SPRING LOCK PIN, STAND quantity	67726 WESTERN SPRING LOCK PIN, STAND	67726	$2.54
51	91962 WESTERN HAIRPIN COTTER 1/8" quantity	91962 WESTERN HAIRPIN COTTER 1/8"	91962	$5.10
60	67707 WESTERN PLATE PIVOT A (96) quantity	67707 WESTERN PLATE PIVOT A (96)	67707	$148.96
61	67708 WESTERN PLATE PIVOT B (97) quantity	67708 WESTERN PLATE PIVOT B (97)	67708	$143.23
62	5572 WESTERN CARRIAGE BOLT 5/8"-11 x 2" G5 quantity	5572 WESTERN CARRIAGE BOLT 5/8"-11 x 2" G5	5572	$5.85
63	90127 WESTERN HEXCAPSCREW_5/8-11X1-1/2 G5 quantity	90127 WESTERN HEXCAPSCREW_5/8-11X1-1/2 G5	90127	$5.10
